Product Description

Specifications

Stator Diameter	50 mm (1.56 in)
Stator Thickness	35 mm (1.38 in)
No. of Stator Arms	12
Magnet Poles	10
Motor Wind	7 Turn Delta
Motor Wire	29-Strand 0.33 mm
Motor Kv	500KV RPM / Volt
No-Load Current (Io/10V)	2.05 Amps
Motor Resistance (Rm)	0.008 Ohms
Max Continuous Current	120 Amps
Max Continuous Power	5328 Watts
Weight	732 Grams (25.81 oz)
Outside Diameter	62.1 mm (2.44 in)

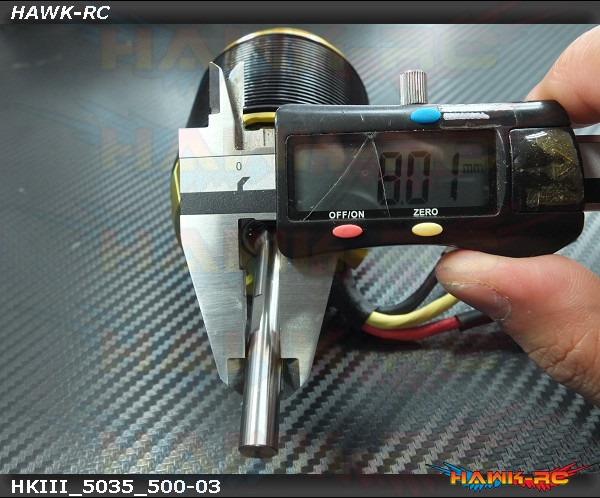

Shaft Diameter	7.98 mm (0.31 in)

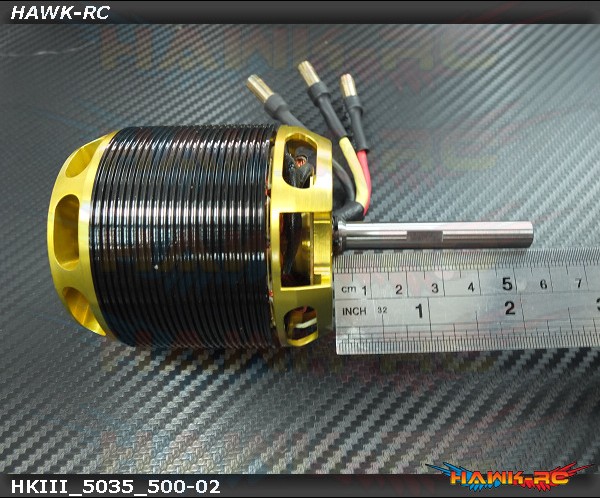

Body Length	68.7 mm (2.70 in)
Overall Shaft Length	101.90 mm (4.01 in)
Max Lipo Cell	12s
Max Peak Current	160A (5 seconds)
Max Peak Power	7104 Watts (5 seconds)
Motor Timing	5deg
Drive Frequency	8kHz
