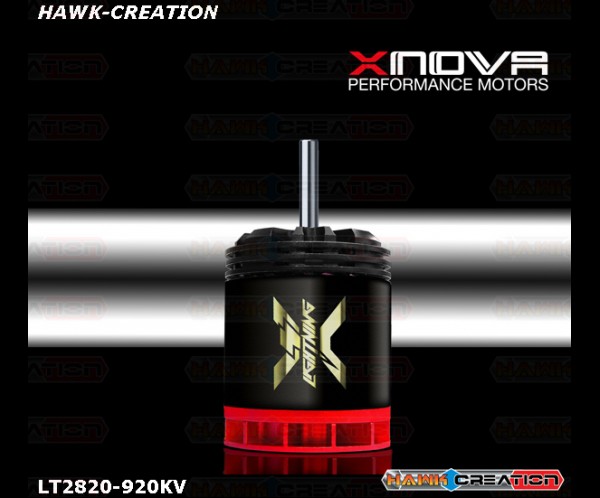

NEW! Xnova Ligtning 2820-920kv - Shaft A+B

We have spent hours of testing to improve the very well established and known 2820 xts motor. The result is an even better overall performing motor and increased efficiency. This all will provide you a cooler running motor and also more consistent power delivery over the full flight. The Xnova lightning series is the highest level of motor performance money can buy nowadays.
Xnova brushless high performance outrunner motor designed for hard 3D, running in 360-380mm bladesize helicopter where highest power to weight ratio is important.

1. New type of high-performance neodymium magnets, heat resistant up to 150 degrees C resulting in overall better performance.
2. Increased power output by use of thicker hand wound YY single strand copper wires, heat resistant up to 250 degrees C.
3. 100% handwound.

Slots & Poles	12n10p
Winding T	YY
rpm/V	920
Volt (V)	10 / 22.2
Io(A)	1.8 / 2.8
Rm (mohm)	28 / 28
Weight (without connector) (g)	150
Body Length (no shaft) mm	40.7
Diameter (mm)	36

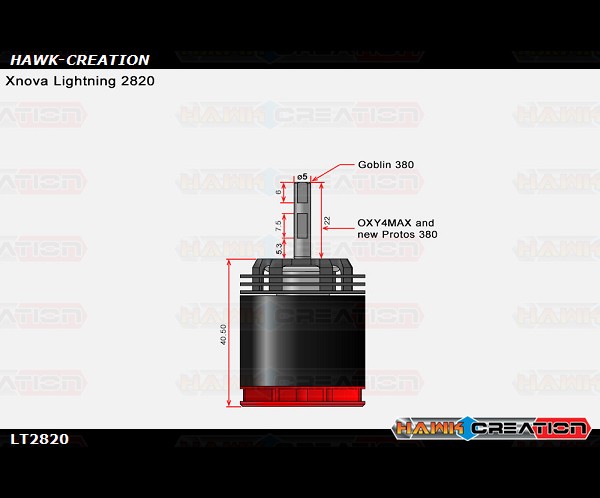

Shaft Length (mm) (Details pictures)	A or B
Shaft Dia. (mm)	5
Mounting Holes CTC Distance (mm)	25
Mounting Screw	M3x0.5
Max Eff. Curr.	25.35 / 47.12
Max Eff.	85.80 / 88.11
Kt (Nm/A	0.0104
Km (Nm/sqrt(w))	0.0620
Max Continuous Power(Watts)	1150
Peak Continuous Power(Watts) (2 sec)	1450
Max Continuous Current(Amps)	52
