iCharger X8


Special Features
1.  X8  uses advanced Synchronous buck-boost DC/DC converter technology  with  high power,  high current and
high-performance power conversion circuit. The maximum charge power capacity is up to  1100W, the maximum
charge/discharge current of a channel is up to 30A.
2.  X8  Supports 8s LiPo, Lilo,  LiFe, LiHV, LTO  and  NiZn batteries, with maximum 2A balance current, and adopts a
unique balance calculation of internal resistance correction. Supports 1-25s NiMH/NiCd batteries and 1-15s Pb
batteries.
3.  With digital-power mode for great protection (over-current protection, over-voltage protection, input under-voltage
protection, input undercurrent protection, and etc.)

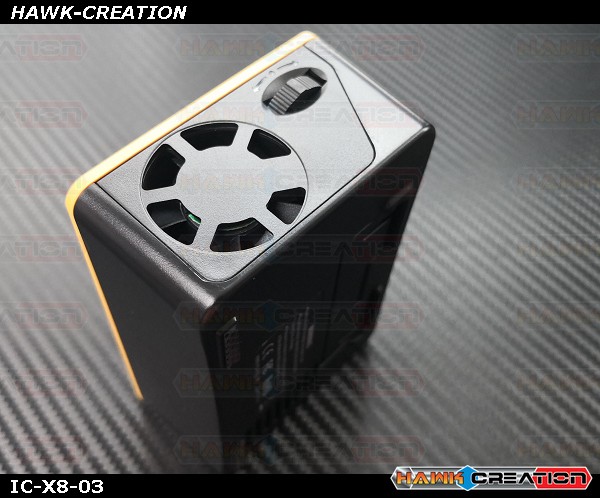

4.  Intelligent fan control. Sensing internal temperature via the internal temperature sensor, to thereby control the fan
speed.
5.  Internal temperature protection. When the internal temperature exceeds the Power Reduce temperature, the output
power is automatically reduced; and the charger will shut down when temperature exceeds the Shut-down
temperature.
6.  This charger can save 32 parameters sets and support the data import/export to SD card.

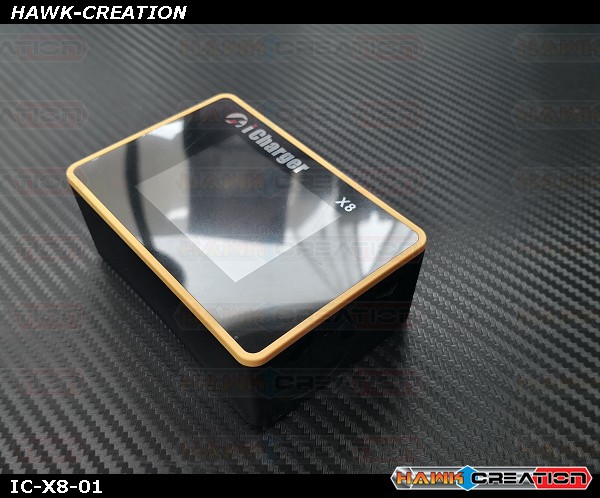

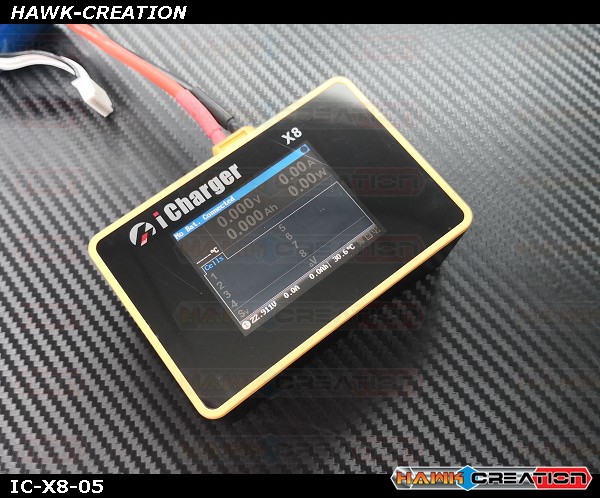

7.  A 2.4"  IPS  LCD screen provides rich information including current, voltage, power, capacity, internal resistance,
control status, time-consuming and temperature, etc.
8.    Multi-discharge features: self-discharge, regenerative to input discharge, and lithium battery extra expanding
discharge.
9.  Supports measurement for internal resistance of battery offline and online. Can measure not only the internal
resistance of the entire battery pack, but also measure the internal resistance of each cell within the lithium battery.
10.  X8  has protection for reversed polarity (input or output), input voltage/current, battery temperature,  charging
capacity, overrun time and maximum power etc.

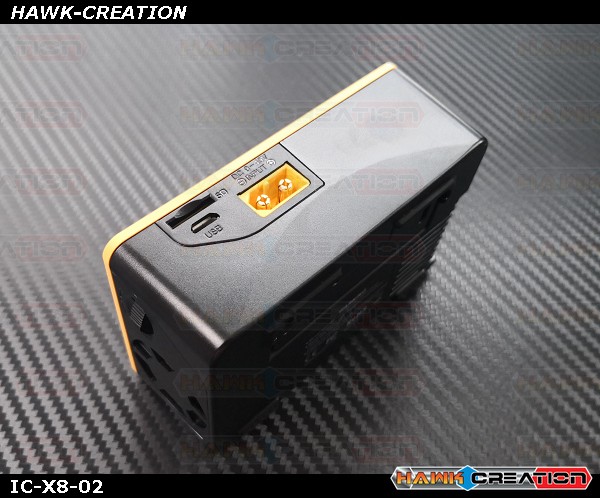

11.  Supports upgrading the hardware program by USB port or SD card.  X8  also supports the “Junsi Console”  software
and can display, plot and analyze the charge and discharge data by it.

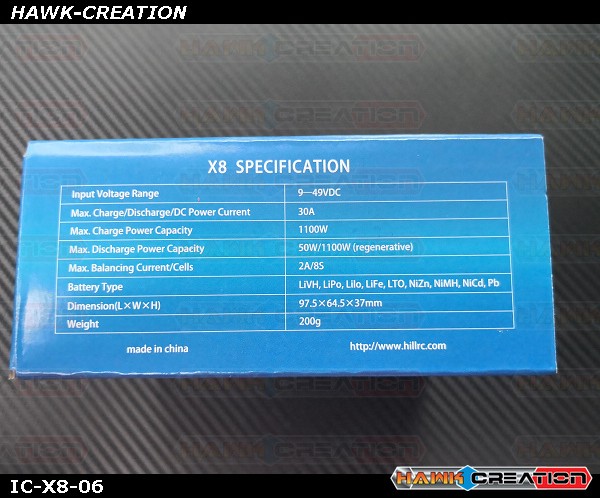

Specifications
Input voltage range: 9—49VDC
Max. charge/discharge/DC power current: 30A
Maximum charge power capacity: 1100W
Maximum discharge power capacity: 50W/1100W (regenerative)
Max. balancing current/cells: 2A/8S
Battery Chemistry Type: LiVH, LiPo, Lilo, LiFe, LTO, NiZn, NiMH, NiCd, Pb
Dimension: 97.5×64.5×37 ±0.5mm
Net weight: 200g
