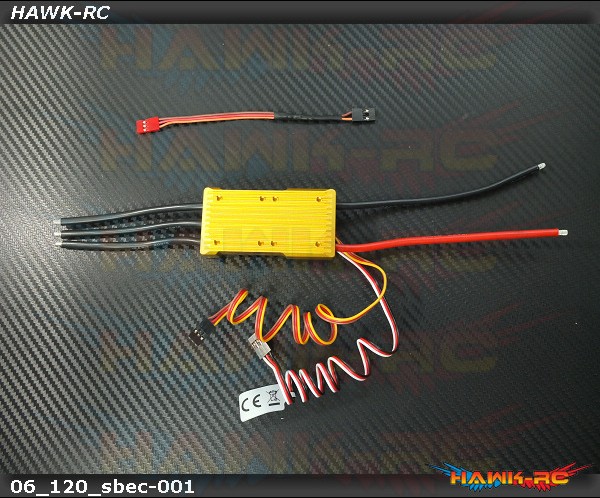

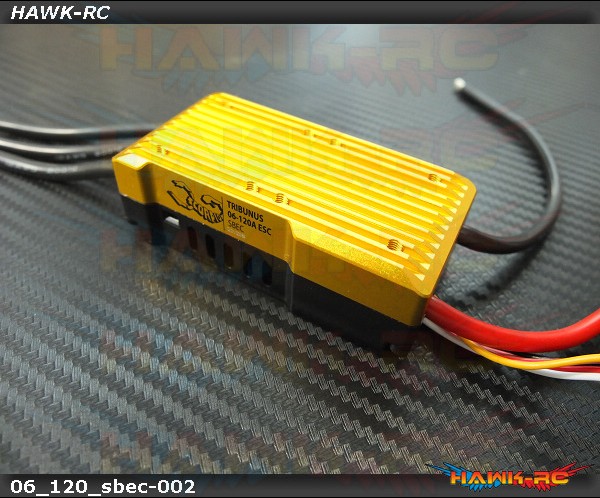

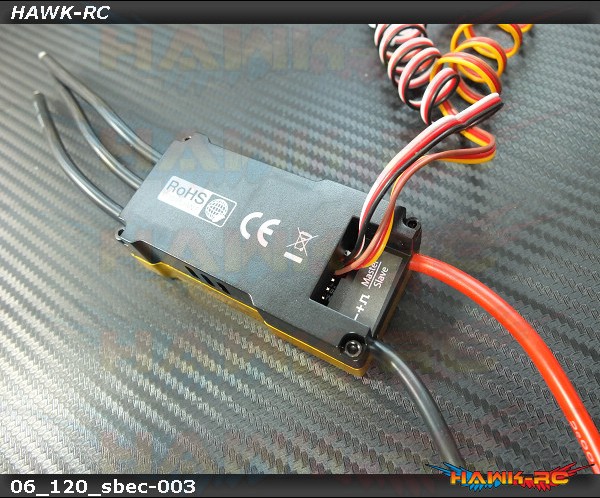

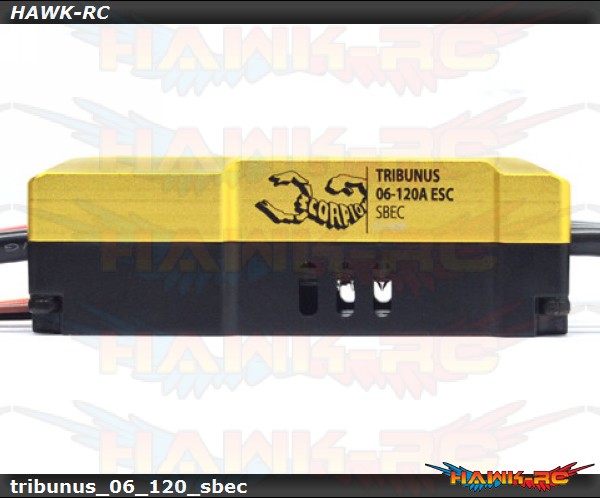

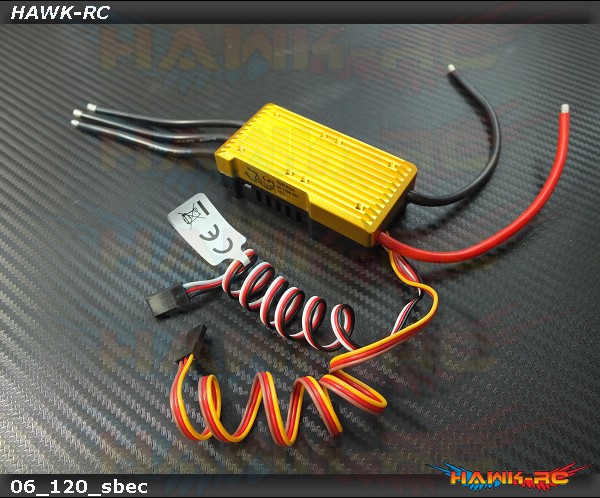

Scorpion Tribunus 06-120A (SBEC)

Airplane and Heli mode,

Stored and unstored Governor, external governor.

Data Logging, Data output port for external data logging device, such as Mikado V control / Vbar combinations. ( more compatible device will be added gradually.

ESC setup can be set by Mikado V control Radio.

PC connectivity, Android connectivity ( OTG cable needed) , V link II Cable(optional) plus Diode adaptor(included) cable needed.

Size: 23.7 x 37 x 73.8 mm

Weight: 108 Grams.

How to set up the esc

Scorpion Tribunus 06-120A Demo flight Produce by Jan-David Schreier and Daniel Schreier

** Scorpion Tribunus 06-120A - User Manual

** Scorpion Tribunus Heli Program(V Link II cable driver included)

** Scorpion V Link II Cable CH340 Driver (For all ESC use)

** How to DIY your own Telemetry/setup cable for the Tribunus ESCs – Vbar NEO

Specifications

Weight (Without Connectors)	108g (3.8 oz)
Max Continuous Current	120 Amps
Peak Current	150Amps
Operating Voltage Range	8-26 Volts
BEC Output voltage:	5.1V to 8.3V adjustable.
Max Continuous BEC Output	10 Amps @ 8.3 V
Peak BEC Output	20 Amps/1s @ 8.3 V
On Resistance	0.4 mOhms *2
Size	23.7 x 37 x 73.8 mm (0.92 x 1.45 x 2.9 in)
