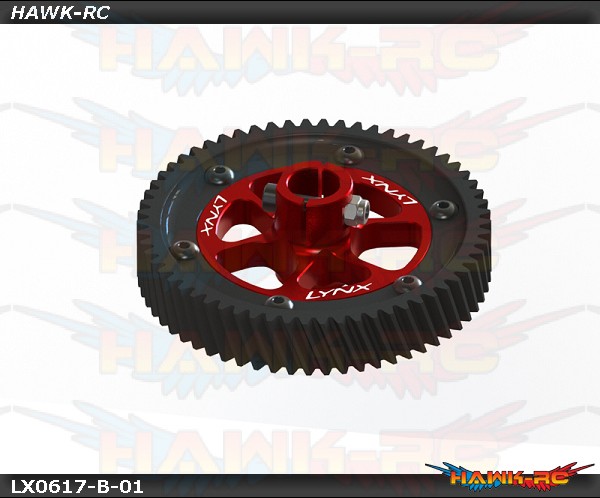

LYNX CNC Ultra Main Gear Set - Red Devil Edition (Black Gear)- GOBLIN 500/570


Lynx Heli Innovations is always looking toward new ideas and solutions.
We redesign the standard Goblin 500 main gear, and we made it special.
Lynx Main Gear is composed by two parts, super stiff center hub in aluminum and a replaceable Delrin 100A ,
CNC Main Gear Ring. The present designs assure the best compromise between geometrically tolerance and strength resistance.
If you enjoy your Goblin 500, this main gear upgrade will support you by superior performance and wear resistance,
fly after fly for long time!
Lynx Goblin 500 Main Gear Ring is produced by CNC operation,
using a techno-polymer material with auto-lube features to assure maximum load and friction resistance.
The Lynx Goblin 500 main gear come preassembled and the hub is available in 2 colors (silver and red).


FEATURES:
- Increase transmission efficiency
- Optimized lightweight and strength design.
- Superior wears and load resistance.
- Aluminum hub helps heat dissipation generated by high power transmission.
- Direct replacement for standard Goblin 500 parts
- Special design for easy Main Gear Ring replacement
- Design assisted by FEA (Finite Element Analysis) to achieve light weight and maximum strength.

TECHNICAL SPECIFICATIONS:
- Goblin 500 Main Gear Center Hub material: Aluminum 7075-T6 – Silver anodized finish
- Goblin 500 Main Gear Ring material: Delrin 100A - POM - White color
- Hardware material: Carbon steel

PACKING LIST:
1 x G500 Ultra Main Gear - Factory Assembled (Silver Center Hub + Main Gear Ring + 6 x M3x6  Button Head Cup Screw)
1 x M3x18 Shouldered Hex Cup Screw
1 x M3 Self Lock Nut
