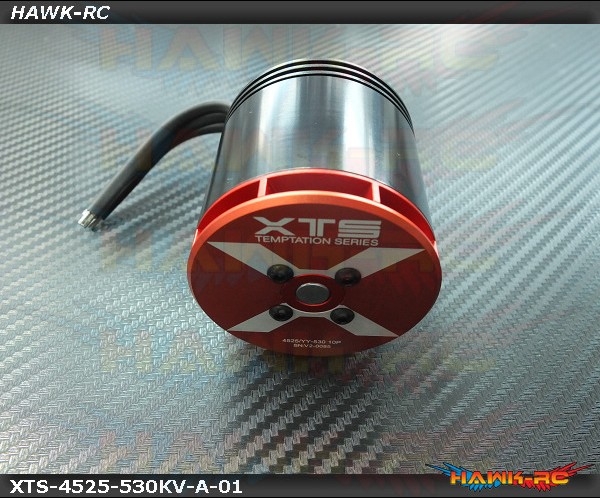

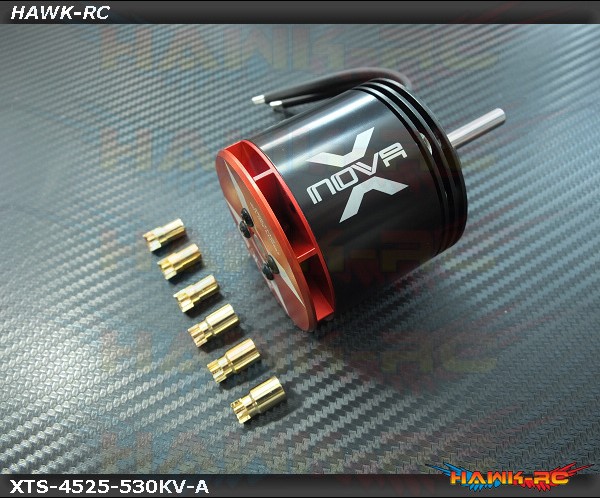

Xnova XTS 4525-530kv YY ( thick Wire) Shaft A

The Xnova motors XTS series is well designed and optimized to perform.

With up to 1,6mm thick wire, we can offer you a second to none quality motor with higher torque level

and overall performance than Xnova normal series.

This motors have been tested under extreme conditions,

such as up to 42 degrees C outdoor temperature for countless numbers of hard 3D flights ,

with great results in specially 800 size helicopters.

These motors offer perfect choice for speed flying enthusiasts.

All XTS motors are 100% hand-wound.

Each motor runs trough a complete quality control test.Xnova brushless high performance outrunner motor

Designed for extrem 3D 630-710mm blade size helicopter where highest power to weight ratio is important.

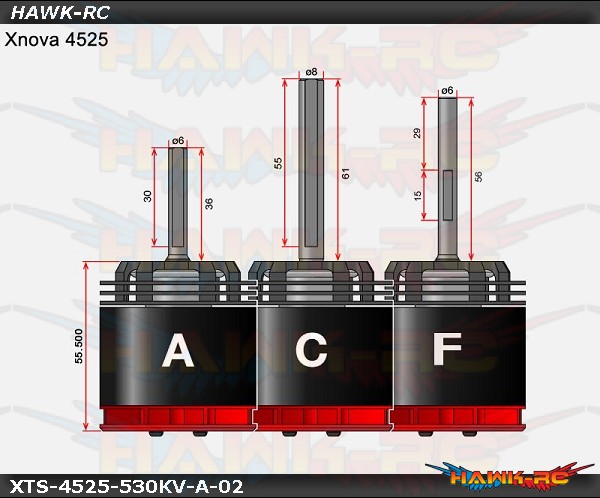

SHAFT TYPE SELECTION BASED ON THE ILLUSTRATION BELOW A,C,F

Spec:

Slots & Poles 12n10p

Winding T YY with thick wire

rpm/V 530

Volt (V) 20 | 30 | 40

Io(A) 3.4 | 4.5 |5.6

Rm (mohm) 9.5 | 9.5| 9.5

Weight (without connector) (g) 488

Body Length (no shaft) mm 55.5

Diameter (mm) 55.7

Shaft Length (mm) (Details pictures) 36 / 56 / 60

Shaft Dia. (mm) 6 | 8

Mounting Holes CTC Distance (mm) 30

Mounting Screw 4x07

Max Eff. Curr. 82.08 | 116.53 | 150.79 |

Max Eff. 92.20| 92.62 | 92.84 |

Kt (Nm/A 0.0180

Km (Nm/sqrt(w)) 0.1849

Max Continuous Power(Watts) 4500

Peak Continuous Power(Watts) (5 sec) 10000 (2sec)

Max cont. current (A) 95
