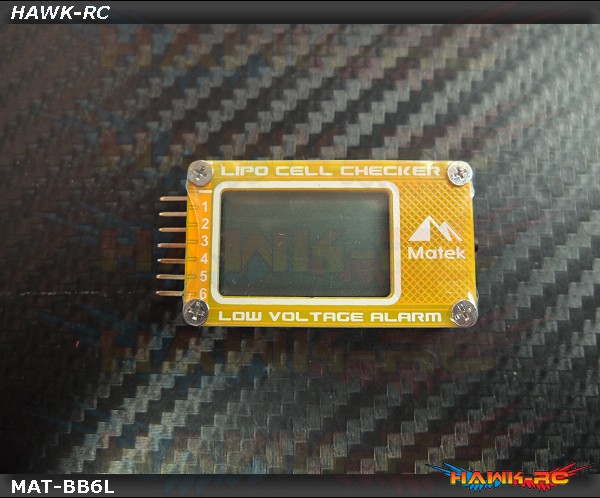

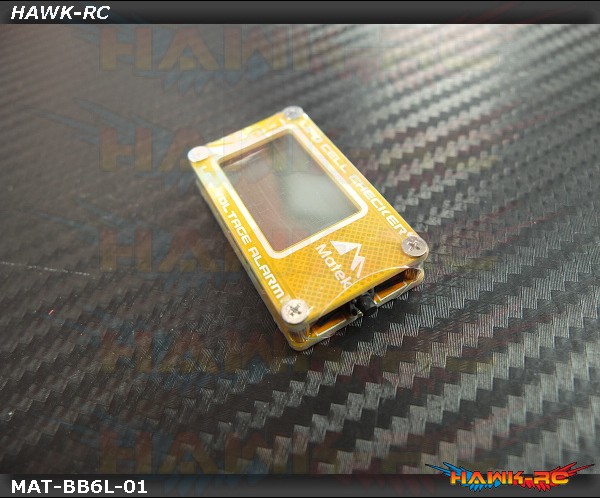

Matek 6S Lipo Wattage Checker (LCD Display, Alarm)

Matek 6S Lipo Wattage Checker features 12bit MCU & a segment LCD screen,
that will show the total voltage & cells voltage of Lipo pack,
in1mV resolution, It also features twin loud buzzzers to notify you,
once the cells reach a user defined voltage.

Features:
For 2~6SLipo or Life
Low power MCU with 12bit ADC
Low voltage alarm & threshold setting
Lowest cell voltage can be recorded.
Segment LCD Screen, Clear display
Twin loud buzzers 95db each
Reverse polarity protection

Specifications:
Working voltage range: 5-27V DC
Alarm set values: 2.7-4.0V/cell or OFF
Voltage resolution: 1mV
Voltage precision: +/-0.25%
Stand by current: <10mA
Pins distance: 2.54mm
Size: 25*44*7.5mm
Weight: 12g

Write a review

Please login or register to review

Matek 6S Lipo Wattage Checker (LCD Display, Alarm)

  • Brand: Hawk Creation
  • Product Code: MAT-BB6L
  • Availability: In Stock
  • $15.99


Tags: MAT-BB6L
