The Xnova motors XTS series is well designed and optimized to perform.
With up to 1,6mm thick wire, we can offer you a second to none quality motor with higher torque level
and overall performance than Xnova normal series.
This motors have been tested under extreme conditions,
such as up to 42 degrees C outdoor temperature for countless numbers of hard 3D flights ,
with great results in specially 800 size helicopters.
These motors offer perfect choice for speed flying enthusiasts.
All XTS motors are 100% hand-wound.

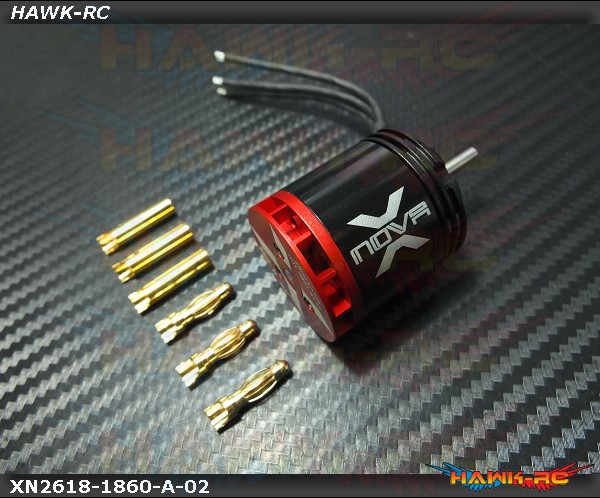

Each motor runs trough a complete quality control test.Xnova brushless high performance outrunner motor

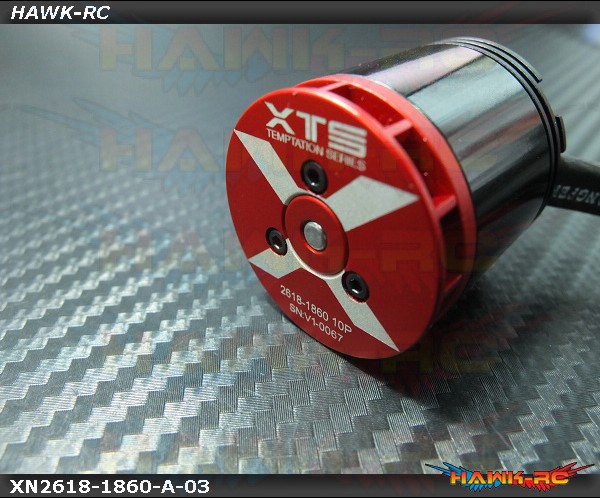

XTS outrunner motor designed for extrem 3D,
320-360mm bladesize helicopter where highest power to weight ratio is important.
Gaui X3, KDS-CHASE-360, T-rex 450 ,
(at some type of helicopter small frame modifications may be necessary).

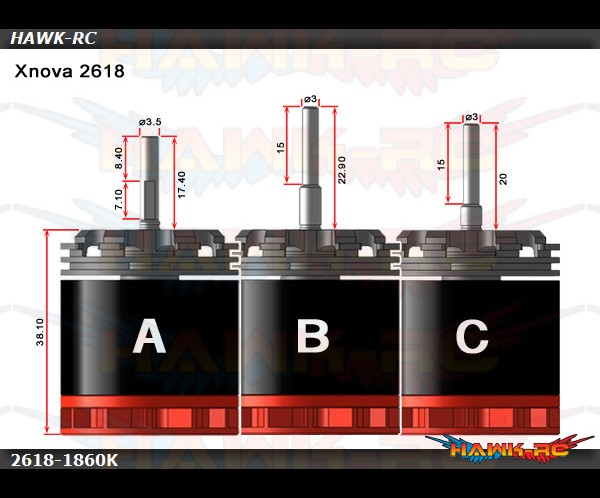

SHAFT TYPE SELECTION BASED ON THE ILLUSTRATION : A,B
High qual. Neodym Mag.heat res. up to 150 degree C.
Specialized wires,heat resistance up to 250 degree C.
Precise balanced.
High performance stator metal sheet.
High quality NMB bearings.
Marked leading high effiency up to 88%.
Cooler running.
Superb quality and machining of CNC parts.
Improved torque and power output
Spec:
Slots & Poles 12n10p
Winding T 10D
rpm/V 1860
Volt (V) 10 / 22.2
Io(A) 2.5 / 4.2
Rm (mohm) 15
Weight (without connector) (g) 110
Body Length (no shaft) mm 38.1
Diameter (mm) 33
Shaft Length (mm) (Details pictures) A,B,C
Shaft Dia. (mm) A=3.5 / B=3
Mounting Holes CTC Distance (mm) 19*2 & 16*2
Mounting Screw M3x0.5
Max Eff. Curr. 40.82 / 78.84
Max Eff. 87.75 / 89.35
Kt (Nm/A 0.0051
Km (Nm/sqrt(w)) 0.0419
Max Continuous Power(Watts) 900
Peak Continuous Power(Watts) (2 sec) 1200
Max Continuous Current(Amps) 45
