Hawk Creation Light Weight Tail Grip Assembly (3mm Shaft, Black) For Warp 360

****Gallery****

High Precision Tollerance CNC Part made with Aluminum 6061-T6

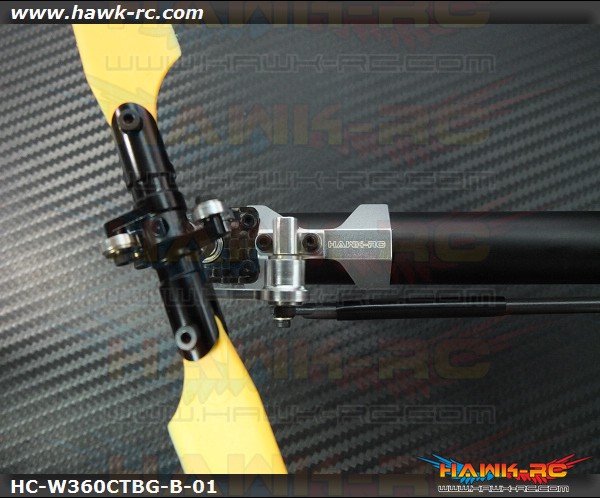

With light weight 4mm>3mm Tail shaft, No worry about the pitch travel (Info photos compare to Stock Grip Assembly)
Trust Bearing Tail Grip Set & Full bearing control link, smooth, precise!

Hawk Grips + Slider + Shatf + 65mm Blades + 17T Pully Total Weight: 23.24g
Stock Grips + Slider + Shatf + 65mm Blades + 17T Pully  Total Weight: 29.65g

Perfectly to use with Hawk Upgarde Tail Gear Unit Silver / Red, 65mm Tail Blade
Also complatible to Stock Tail Gear Box(need to add a 0.2mm washer to the slider linkage ball)

***If using Stock 65mm tail blade, need to cut 1.5mm of blade root end***
***Other Parts show in demo photos not including***

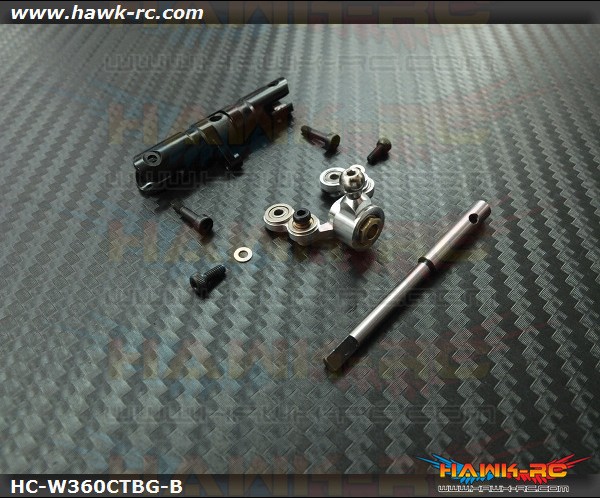

Content:
4mm>3mm Harden Tail Shaft *1pc

Grip Set:
CNC Grip *2pcs
3*6*3 Trust Bearing *2pcs
3*6*2.5 Ball Bearing *2pcs
4*7*2.5 Ball Bearing *2pcs
12.9 Hex M2x10 Screw *2pcs
12.9 Hex M2x5 Screw *2pcs
3*4.8 Washer *2pcs
Center-Hub *1pc

Slider:
CNC Control Link *2pcs
2*5*2.3 Flanged Bearings *4pcs
3mm Tail Shaft Slide Bush (Threaded Sleeve) *1pc
CNC Pitch Slider Arm *1pc
Tail Pitch Slider Bearing Mount *1pc
4*7*2.5 Bearing *2pcs
1.86*3.6*0.5 Washer *4pcs
12.9 Hex M2x5 Screw *4pcs




Write a review

Please login or register to review

Hawk Creation Light Weight Tail Grip Assembly (3mm Shaft, Black) For Warp 360

  • Brand: Hawk Creation
  • Product Code: HC-W360CTBG-B
  • Availability: Out Of Stock
  • $39.99
