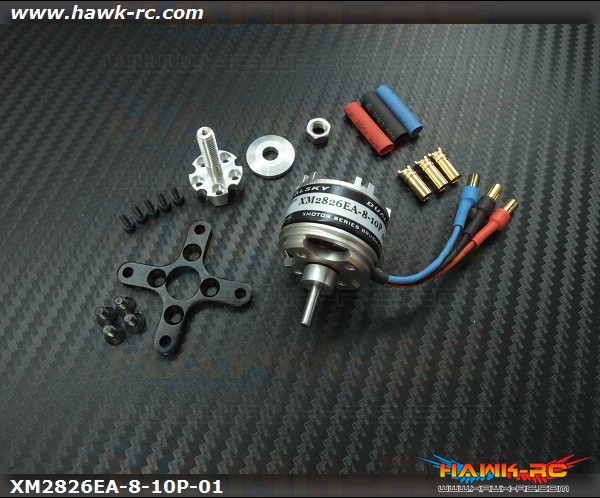

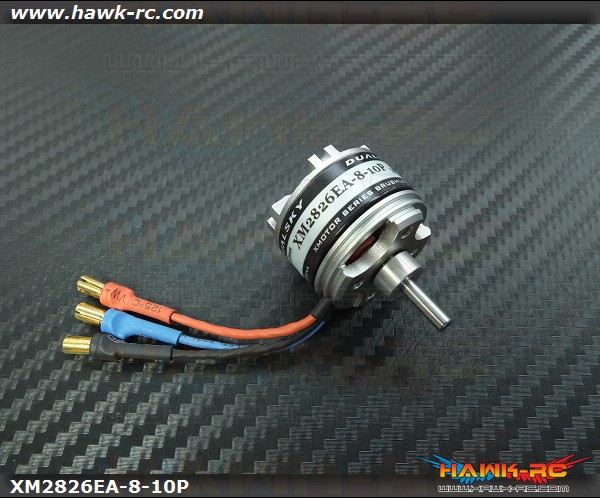

DUALSKY Xmotor EA Brushless 2770KV Outrunner (Wings, speed models)

Features:
Improved front cover, better heat dissipation
Rotor with more beautiful star design
Increased the rigidity of the rotor and shell, reduce vibration, can withstand more loads.
Adopt tile magnets with higher grade
Higher efficiency laminations
Reduce the air gap of the stator and rotor, increase efficiency
Thicker high temperature enameled wire, improved insulation and impact resistance
Compare EA with CA at same level, the power increased 10-20%, and efficiency increased 3-5%.
More options for KV value, suitable for practical use
Add XM2838EA, XM4255EA which models CA do not have.
Motor mounting holes and shaft diameter compatible with CA Series
Accessories compatible with the CA series (except for new models)
8mm propeller mount with the thinner threads, propeller not easy to loose.

Specification:

Description : XM2826EA-8-10P
RPM/V (KV) : 2770
Alias(Stator diameter, Magnet length) : 2208
Weight(g) : 43.0
Diameter(mm) : 27.5
Length(mm) : 23
Diameter of Shaft(mm) : 3.175
Mounting holes pitch(mm) : 16/19
Slots,Poles : 12,10
Idle Current(Io) @10V(A) : 2.3
Resistance(Ri)(mOhm) : 43
Cruising power(W)[8 mins] : 115
Bursts current(A)[15s] : 18.9
Peak power(W)[15s] : 210
Recommended ESC : XC1812BA
Setup 1(No. of Cell, Prop.) : 2S, 7x5
Setup 2(No. of Cell, Prop.) : 3S, 6x3,6x6
Max. weight of sport models(kg) : 0.58
Max. weight of 3D models(kg) : 0.38
Memo : Wings, speed models
