OMPHOBBY M4 Charm Orange Kit (CHEAP SHIPPING COST)

***LOWER WORLDWIDE AIRMAIL PARCEL SHIPPING COST***

M4 Instruction Manual_230411.pdf

Features & Design

Designed by Jonas Wackershauser

The best performing 380 size blade on the market, included as the standard blade

Large, powerful direct drive main motor

Large pitch range main rotor design for extreme control power in any situation, ±14° collective pitch with ±14° cyclic pitch possible

Flying weight: appx. 1350g (with 6S 2000mAh HV Lipo)

Excellent main and tail blade grip guidance through radial-axial-radial bearing arrangement

M2.5 screws used in most places across the frame for excellent durability, serviceability and crash resistance

OMPHobby M4 Tail design

Belt driven tail rotor. 71mm tail blades.

High precision, long throw tail mechanics for easy setup, precise control and virtually unlimited tail power

Tail rotor drive ratio: 4.5:1

OMPHobby M4 servo layout

Robust and durable 8mm main shaft, 5mm spindle shaft and 5mm tail shaft

Compact and symmetric servo layout for easy access and excellent flight performance

OMPHobby M4 Gyro mount

Ample gyro mount space to accept variety of Flyberless Gyro controllers.

Sacrificial canopy holders with replaceable beams

Extremely rigid, teardrop shaped tail boom

OMPHobby M4 Battery tray

Large battery space under the canopy, 6S 1800mAh-2200mAh possible. Recommended battery weight: 295-325g

Battery tray system with replaceable carbon fiber latch beam, left- and right handed option available

XT60 connector frame mount for easy battery connection

OMPHobby M4 Product dimensions

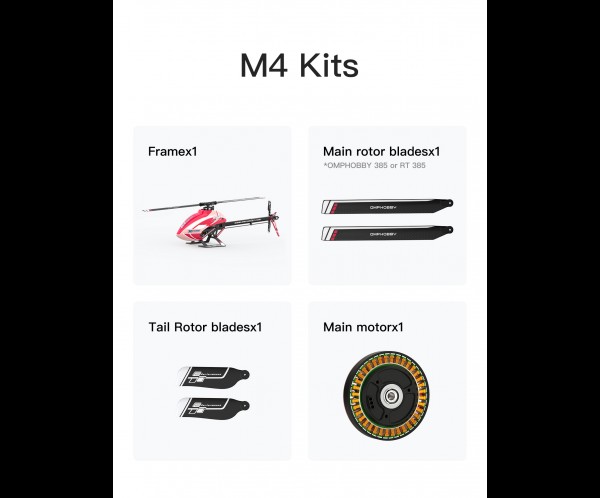

Includes

M4 RC Helicopter Airframe Kit (Requires Assembly)

Brushless Motor

RT- 385 Ultimate Main Rotor Blades

71mm Tail Rotor blades

Required Components

1x Flybarless controller [e.g. MSH Brain2 / Vbar / BeastX / Bavarian Demon / Sprit]

1x Radio Transmitter (6-channel or more) [e.g. Radiomaster TX16S / TX12 / Boxer / Zorro]

1x Radio Receiver (6-channel or more) [e.g. Frsky R-XSR, Radiomaster R81]

1x LiPo Battery: 6S 1800mAh-2200mAh. Recommended battery weight: 295-325g [e.g. SLS Quantum 1800mAh 6S1P, SLS XTRON 2200mAH 6S1P]

WARNING! This is not a Toy. Improper usage can result is serious injury. RC Simulator practice is recommended before attempting to fly this model. Not suitable for children.

 Kit version contents: Airframe, main motor, rotor blades

 PNP version contents: Airframe, main motor, rotor blades, servos, ESC
