Mini Protos - Ultra Tail Case - Silver

Instruction Manual
--> Download PDF Manual here



Lynx Heli Innovations has redesigned the standard Mini Protos plastic tail case, using aluminum alloy.
Helicopter upgrades can be a trap – often they look nice but do little for function.  Weight is of course critical.  In particular, helicopter tail components are important were small weight differences can make a huge difference to final flight performance.
We spent hours optimizing the design to achieve the required strength with a final weight beyond compromise. We are pilots, and we expect top performance from our upgrades.
Our tail case housing is made by 3 CNC parts (Hub, Left and Right plates), assembled together with few and strategic screw system.
Belt and tail shaft service become really easy thanks the clever locking system were the left panel can easy removed with only 3 screw.
We have improved the standard plastic part strength and geometrical tolerances impossible using mold plastic.
Lynx Mini Protos tail case has tail pretension pulley and built-in tail boom lock pin that fit into tail boom.  Tail case can also work without the lock pin and with any Mini Protos vertical fin you like.
For the easy installation the Mini Protos tail case is preassembled in factory and ready to use.
Special set of shims are supported for the best fine adjust to remove any sideway shaft play

FEATURES:
- Direct replacement for the standard Mini Protos tail case.
- Increase tail response thanks precise dimensions and Aluminum alloy strength.
- Built-in tail boom lock pin.
- Increased crash resistance.
- Tail belt pre-tensioned pulley, assure the best engagement between belt and tail pulley, increasing the tail performance.
- Radial bearing ABEC 5 class assures the best free-rotation and free-play.
- FEA (Final Elements Analysis) design assisted, resulting in lightweight and maximum strength.

TECHNICAL SPECIFICATIONS:
- Tail Case Material: Aluminum 7075-T6 – Silver anodized finish.
- Bearing material: Chrome Steel – ABEC5 – Japan Made
- Screw material: Carbon Steel Class 12.9
- Weight : 25g - included screws and fin

PACKING LIST:

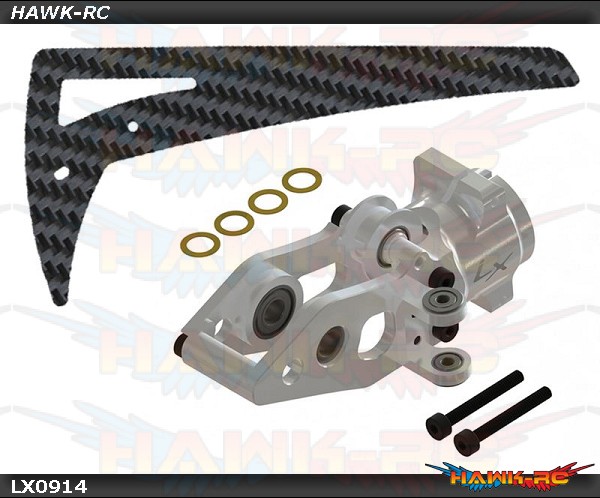

1 x Mini Protos Tail Case – factory preassembled with bearing and screw – Silver
4 x Shims washer 4.05x5x0.1 (fine tuning tail shaft assembly)
1 x Carbon Fiber Vertical fin
