LYNX Ultra Swash Plate Silver - G380

Lynx Heli Innovations has redesigned and improved the standard Goblin 380 swash plate using a combination of 7075 aluminum alloy. We introduce a replaceable low friction copolymer spherical swivel bearing and robust stainless steel linkage balls that comes fully assembled and ready to fly/plug and play.

We work tirelessly to optimize our designs and perform flight-testing to achieve the desired benefits with a final weight and design specification without compromise. We are pilots, and we demand upgrades that truly deliver increased performance with the lightest weight possible.

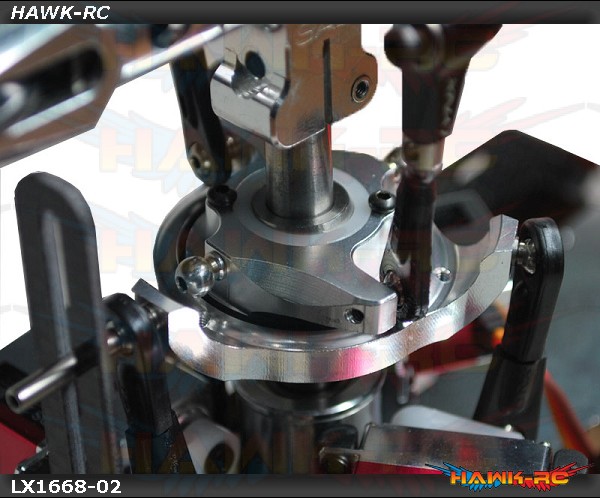

Lynx Goblin 380 swash plate design is based over standard swash plate, were we modify the swash plate linkage ball position to achieve the best kinetics movement without interaction.

Our design has all linkage balls (upper and lower swash plate section) in centerline with the swivel ball position, pictures below are self-explanatory and cross section show the basic difference between standard and Lynx Swash Plate.

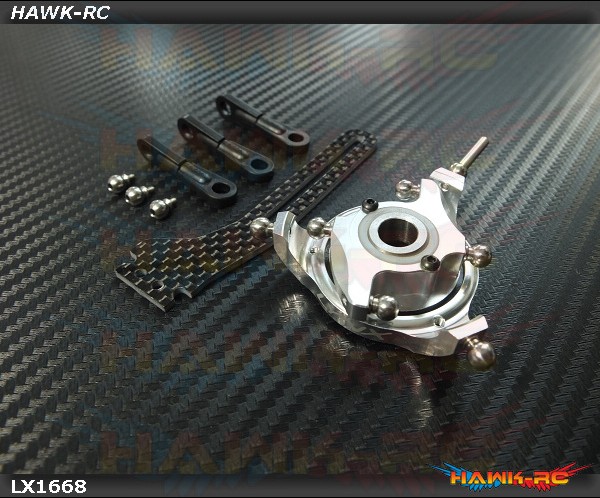

In order to compensate the different Servo Linkage Rods length, we add a set of adjustable rod and Lynx Heavy Duty Plastic Linkage. This extra specification will give also the possibility to adjust swash plate leveling by mechanical set, avoiding to force the center point by FBL option.

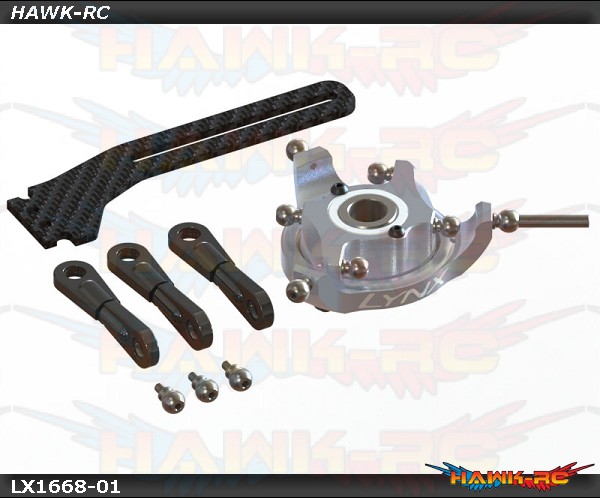

One other parts that need replaced, included on the packing is the autorotation bracket that have special design and length to perform as need on Lynx Swash Plate design.

Lynx Heli Innovations is proud to introduce our own in house design Spherical Swivel Bearing assembly that allows the swash plate to pivot around the main shaft better than ever! Thanks to our experience and our desire to for better solutions, we have created a new Spherical Bearing bushing from a low friction copolymer to ensure an incredibly smooth, solid and precise swivel action while eliminating looseness between the ball and bushing for drastic elimination of any free play.

The Spherical Bearing assembly is now replaceable/serviceable by the customer. It is composed of a Chrome Steel alloy center ball and a low friction copolymer bushing surrounding the center ball. These small parts are produced by Lynx and factory assembled to become the heart of the Lynx Pro Edition Swash Plate.

For those who push the limits and fly beyond them, this swash plate was designed to be almost completely rebuild-able by the customer. Offering an economic service parts bag, you will be able to follow the simple instructions and replace the parts most prone to wear, the Spherical Bearing assembly and the linkage balls. (The large center ball bearing is pre-lubricated and permanently mated to the housings and the center is press fit to ensure a long life.)

Attention to detail and design combined with material strength, durability, precise CNC tolerances, fit and finish and most important lightweight all contribute to the added precision and the ability for the customer to rebuild, which ensures the best possible performance flight after flight for the Goblin 380.

The new Lynx Swash Plate of course looks great, but it also has the benefits and performance increase to match! Lynx Goblin 380 Swash Plates are the next level in lightweight, precision and rebuild-able swash plates.

FEATURES:

- Relocated linkage ball and swivel position for the correct swash plate geometrically movement.

- Specifically design for advanced 3D pilot and intense 3d fly

- Smooth and fluid swash plate movement in any extreme swash plate move.

- High quality ABEC 5 SST radial bearing for maximum precision and durability

- Direct replacement for the standard Goblin 380 part

- Preassembled with lock thread linkage balls and lubricated bearing.

- FEA (Final Elements Analysis) assisted, achieve lightweight and maximum strength.

TECHNICAL SPECIFICATION:

- Swash Plate Material: Aluminum 7075

- Linkage Balls and Swivel Ball Material: Chrome Steel Alloy

- Swivel Ring Material: POM base copolymer.
