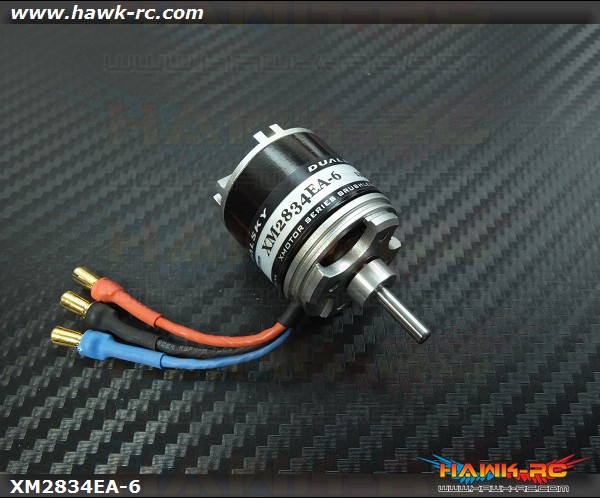

DUALSKY 450 Size Plane Xmotor EA Brushless 1360KV Outrunner

Features:

Improved front cover, better heat dissipation
Rotor with more beautiful star design
Increased the rigidity of the rotor and shell, reduce vibration, can withstand more loads.
Adopt tile magnets with higher grade
Higher efficiency laminations
Reduce the air gap of the stator and rotor, increase efficiency
Thicker high temperature enameled wire, improved insulation and impact resistance
Compare EA with CA at same level, the power increased 10-20%, and efficiency increased 3-5%.
More options for KV value, suitable for practical use
Add XM2838EA, XM4255EA which models CA do not have.
Motor mounting holes and shaft diameter compatible with CA Series

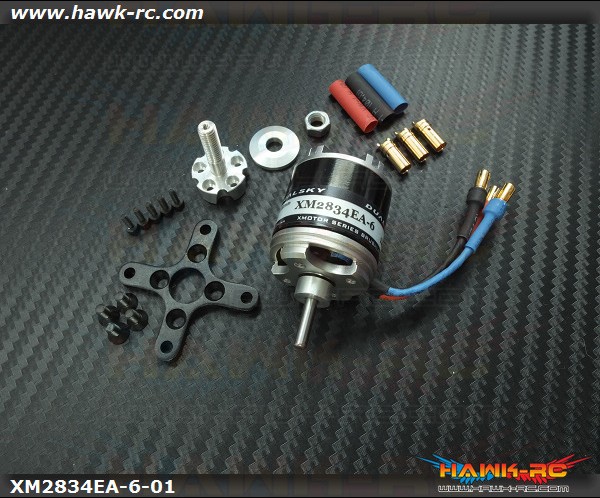

Accessories compatible with the CA series (except for new models)
8mm propeller mount with the thinner threads, propeller not easy to loose.



Specification:

Description:  XM2834EA-6
KV: 1360RPM/V
Alias(Stator diameter, Magnet length): 2216
Weight: 71g
Diameter: 27.5mm
Length: 32mm
Diameter of Shaft: 3.175mm
Mounting holes pitch: 16/19mm
Slots,Poles: 12,14
Idle Current(Io) @10V: 2.1A
Resistance(Ri): 32mOhm
Cruising power[8 mins]: 157W
Bursts current[15s]: 25.7A
Peak power[15s]: 285W
Recommended ESC: XC2512BA
Setup 1(No. of Cell, Prop.): 2S, 12x6
Setup 2(No. of Cell, Prop.): 3S,9x6
Max. weight of sport models: 0.78kg
Max. weight of 3D models:0.52kg
Memo: 450 class
